Electric Water Heating Element for Tankless Water Heater
AFCT01
1.Noiseless and durable，
2.Working time Over 100000hours
3.Water and Electricity Complete Separation,Absolutely Safe

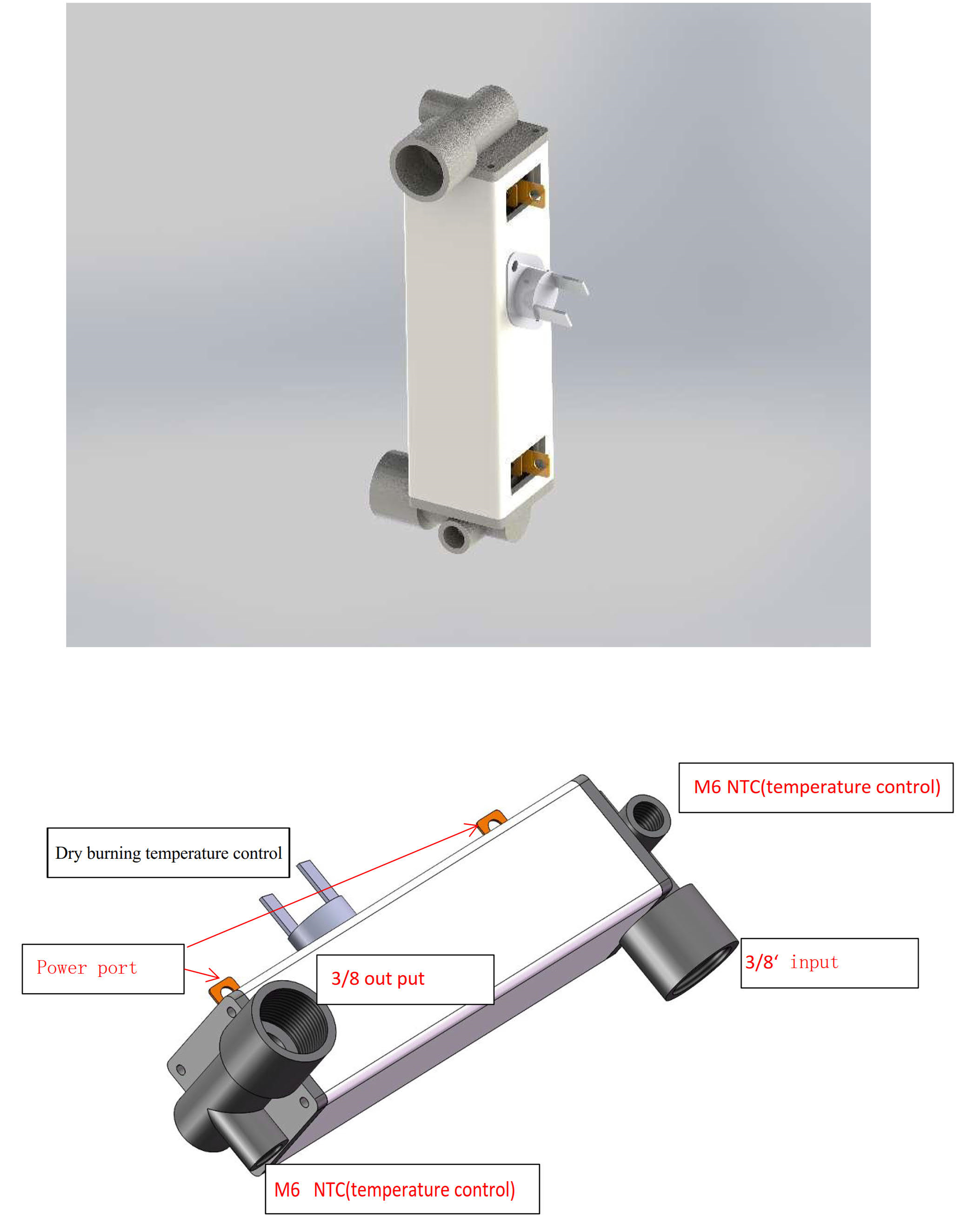

4,Built-in temperature controller and Dry burning protection
5.Compact size and light weight.
6.Plug and play, suitable for most models
2.Working time Over 100000hours
3.Water and Electricity Complete Separation,Absolutely Safe
4,Built-in temperature controller and Dry burning protection
5.Compact size and light weight.
6.Plug and play, suitable for most models
Delivery
FOB
minimum order
100 pieces
Supply Ability
10000pieces / Week
Country of Origin
China
Stock Time
7Day
Quantity
US $8.00 - US $9.00 / pieces
Specifcation sheet of Electric tankless water heater element
AFCT01 Electric Heating Element for Tankless Water Heater | |
3000W to Above | |
Crystalline FilmSpecial ceramic | |
LH | 3000W- 3L/MIN |
Temperature rise Amplitude | 3000W-20℃ |
Recommended usage scenario | Perfect for kitchen sink, bathroom sink, school, hospital, and hair salon sink. Enjoy on demand hot water heater at your every need. |

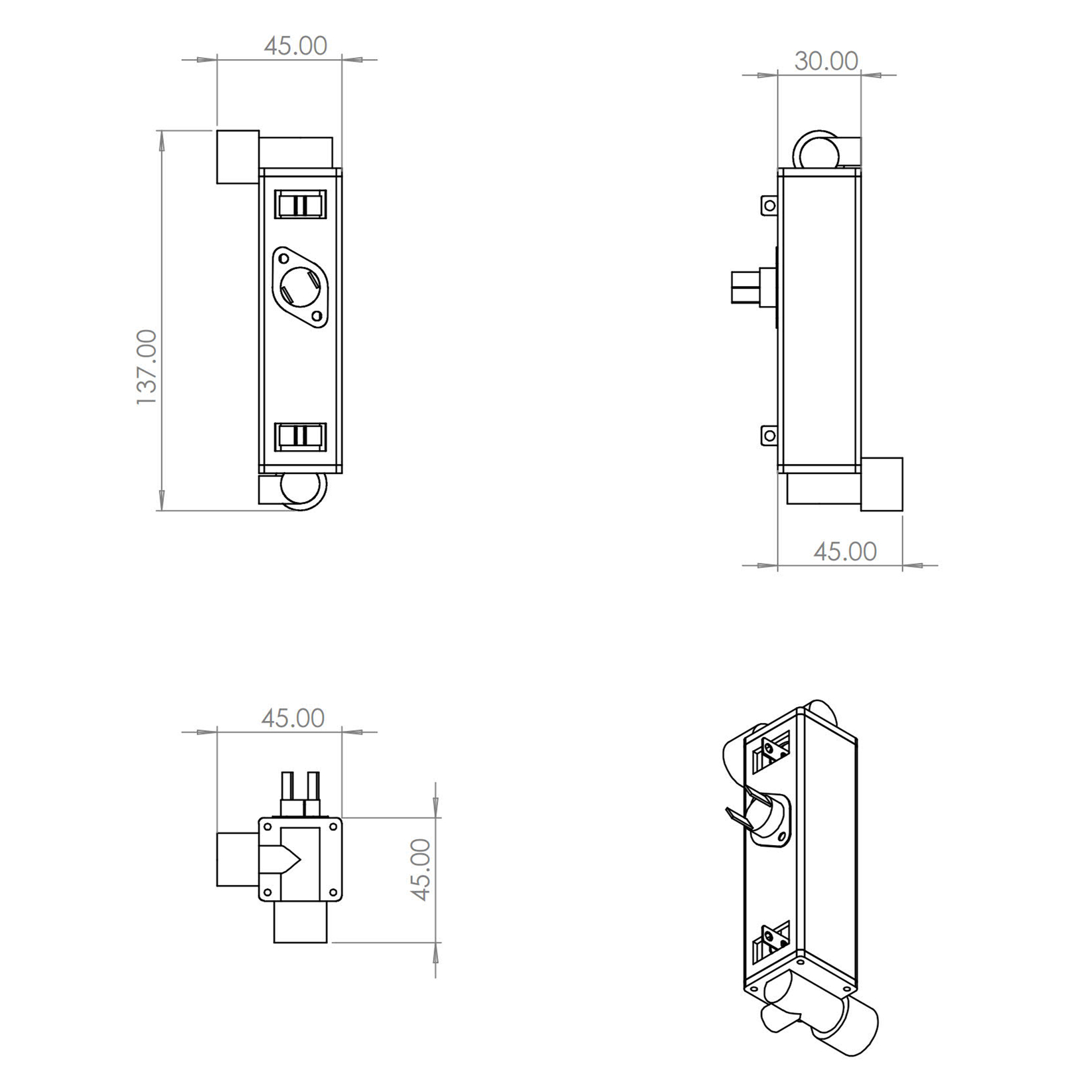

| Size: | 3000W--137X45MM |
| Speciality: | 1.Noiseless and durable， 2.Working time Over 100000hours 3.Water and Electricity Complete Separation,Absolutely Safe 4,Built-in temperature controller and Dry burning protection 5.Compact size and light weight. 6.Plug and play, suitable for most models |
Specifcation sheet Electric tankless water heater heating cube
| Heating tube: | φ8-30MM, |
| Tube Material: | Special ceramic |
| Maximum power density: | 80-100Watt/cm2 |
Crystalline Film | |
℃ | |
℃℃ | |
Speciality: | 1, Anti pressure, anti bending, anti high temperature, anti corrosion, adapt to a variety of complex conditions; 2, Insulation performance is strong, working leakage current is small, far higher than the requirements of the national safety standards; 3. The thermal conductivity is above 40W/ (m.K), and the heat utilization rate is higher. Combined with the electric conversion efficiency of Nano electrothermal film, the thermal efficiency can reach more than 98%. 4, The product volume is smaller, better to meet the needs of various models; 5, Nano film Special ceramics with combination more closely, more firm, more stable, Very durable,Long life over 10years. |
Electric tankless water heater element heating technology
Crystallite Film
Patent Number
ZL 200820139362.9
ZL 200620118264.8
Electric conversion efficiency up to 99%
Each sub-power can be fully utilized
17 years of development experience microcrystalline electric membrane material
Won the national invention patent.
Crystallite Film
Scientific name”SnO2 film”,Because of its high light transmission properties,Also known as transparent heating film,It is the use of chemical vapor deposition,Spray Pyrolysis,Ion sputtering,Evaporation coating process,In the glass, mica, ceramics and other high temperature insulating surface to generate substantially conductive thin film doped semiconductor nano material.SnO2 film With high hardness, high transmittance, high electrical conductivity, high temperature thermal stability and excellent physical and chemical properties,Widely used in the aerospace, defense, electronics industry household appliances, photovoltaic cells, LSI substrates, thin film resistor heating element, optical instruments, sensors."Silicon"and"carbon crystal"Compared to other low-temperature heating film,Crystallite Film has an unparalleled advantage in security, temperature resistance and stability.
Science and Technology: Nanoscale semiconductor electric film to the global leader
Energy Saving: Electric conversion efficiency of 99%,Users spend almost all electricity is converted into heat.
Quick Start: crystallite Rapid heating technology,Open and hot.
Safety : Abnormal over-temperature self-protection,Protection of the family safety.
Comfortable : Continue to produce soft warmth without heat.
Health: From the far infrared light wave health life.
Patent Number
ZL 200820139362.9
ZL 200620118264.8
Electric conversion efficiency up to 99%
Each sub-power can be fully utilized
17 years of development experience microcrystalline electric membrane material
Won the national invention patent.
Crystallite Film
Scientific name”SnO2 film”,Because of its high light transmission properties,Also known as transparent heating film,It is the use of chemical vapor deposition,Spray Pyrolysis,Ion sputtering,Evaporation coating process,In the glass, mica, ceramics and other high temperature insulating surface to generate substantially conductive thin film doped semiconductor nano material.SnO2 film With high hardness, high transmittance, high electrical conductivity, high temperature thermal stability and excellent physical and chemical properties,Widely used in the aerospace, defense, electronics industry household appliances, photovoltaic cells, LSI substrates, thin film resistor heating element, optical instruments, sensors."Silicon"and"carbon crystal"Compared to other low-temperature heating film,Crystallite Film has an unparalleled advantage in security, temperature resistance and stability.
Science and Technology: Nanoscale semiconductor electric film to the global leader
Energy Saving: Electric conversion efficiency of 99%,Users spend almost all electricity is converted into heat.
Quick Start: crystallite Rapid heating technology,Open and hot.
Safety : Abnormal over-temperature self-protection,Protection of the family safety.
Comfortable : Continue to produce soft warmth without heat.
Health: From the far infrared light wave health life.
